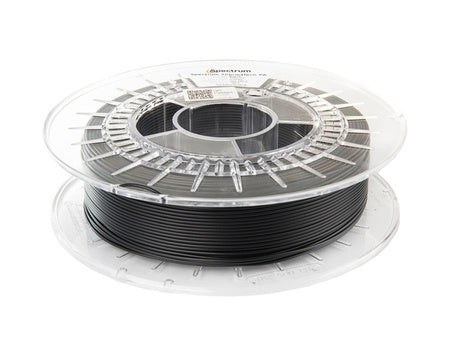

Spectrum ThermaTech PA
High-Temperature Polyamide | Industrial Grade Toughness | 0.75kg
Spectrum ThermaTech PA is a specialized high-performance polyamide (Nylon) designed for parts that must operate in extreme thermal environments. Unlike standard PA filaments that lose their structural integrity at moderate temperatures, the ThermaTech series maintains its high mechanical strength and stiffness even under significant heat stress.
The Natural variant provides the purest form of this high-temperature polymer, ensuring maximum interlayer adhesion and transparency to the material's internal crystalline structure. It is the ultimate solution for end-use functional parts in automotive, aerospace, and industrial machinery.
ThermaTech PA is formulated to resist deformation at continuous operating temperatures that would melt or warp standard PLA, ABS, or PETG. It offers an impressive Heat Deflection Temperature (HDT), making it suitable for under-the-hood automotive components and heavy-duty industrial sensors.
🌡️ Superior Thermal Resistance
Specifically developed to handle high thermal loads without significant loss of mechanical properties.
💪 Industrial Toughness
Excellent impact resistance and high tensile strength, characteristic of premium grade polyamides.
🧪 Chemical Endurance
Highly resistant to oils, greases, and many industrial solvents, typical of the high-end PA family.
📐 Exceptional Layer Bonding
Advanced formulation minimizes the typical Nylon "warping" effect while providing massive Z-axis strength.
- Functional automotive engine bay brackets and connectors
- Custom industrial air intakes and manifold prototypes
- High-temperature housings for electronics and sensors
- Durable manufacturing jigs and assembly fixtures
- Chemical-resistant laboratory and workshop tools
- End-use components for HVAC and ventilation systems
| Material Identity & Engineering Profile | |
|---|---|
| Producer / Series | Spectrum Filaments / ThermaTech Series |
| Material Type | Advanced Polyamide (PA) |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color Name | Natural (Unpigmented Industrial Finish)/black |
| Continuous Service Temp | Significantly higher than standard Nylon |
| Net Weight | 0.75 kg (Pro-Grade Spool) |
| EAN / SKU | 5903116682634 / 80263 |
| Nozzle Temperature | 250 - 280°C |
| Heated Bed Temperature | 90 - 110°C |
| Print Speed | 30 - 60 mm/s |
| Enclosure | Required (To prevent delamination) |
| Nozzle Type | Hardened Steel or Brass |
| Bed Adhesive | PA-dedicated glue / Magigoo PA / PEI |
| Diameter Accuracy | Thermal Batch Testing | Protection | Compliance |
|---|---|---|---|
| ±0.05 mm (2-Axis) | Certified High-Temp Grade | Vacuum Sealed + Desiccant | Individual QR Code Quality Report |
Access precise mechanical and thermal data for your project:
* Professional Handling Tip: Like all high-performance Polyamides, ThermaTech PA is hygroscopic. For best results, always dry the filament at 80°C for at least 4-6 hours before printing. If using an AMS or dry-box, ensure the humidity remains below 15% to prevent bubbling and brittle parts.
