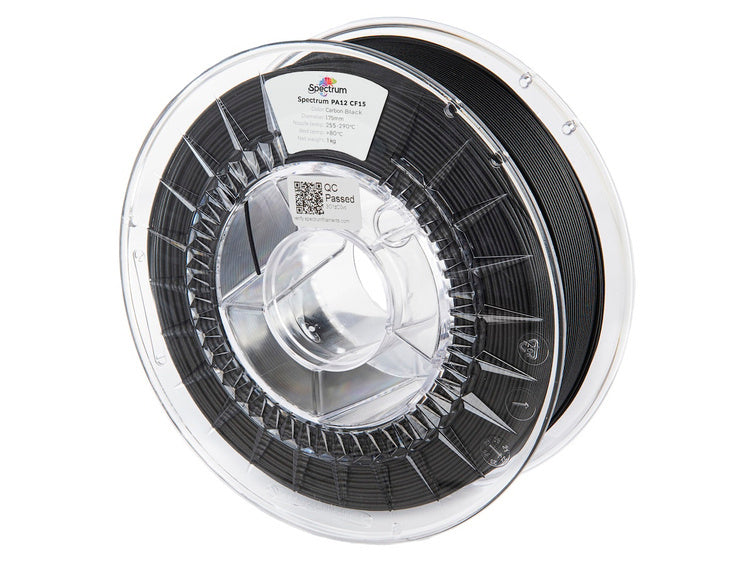

Spectrum PA12-CF15
Carbon Fiber Reinforced Polyamide 12 | The Ultra-Endurance Standard
Spectrum PA12-CF15 is the ultimate solution for industrial 3D printing applications where standard materials fail. By combining a specialized Polyamide 12 base with 15% high-tensile carbon fibers, Spectrum has engineered a material that offers twice the stiffness of standard nylon while exhibiting industry-leading low moisture absorption.
Unlike PA6-based composites, PA12-CF15 maintains its mechanical integrity and dimensional precision even when exposed to humid environments or submerged in fluids. This makes it the premier choice for functional components in automotive, aerospace, and defense sectors where parts must perform reliably under extreme stress and variable environmental conditions.
While most nylons are "thirsty" for moisture, PA12-CF15 is hydrophobic. This means your parts won't swell, warp, or soften after printing. The 15% carbon fiber loading provides a tensile modulus that allows for the creation of lightweight structural parts that can directly replace machined aluminum or steel components.
🌑 High Modulus Stiffness
15% carbon fiber reinforcement creates a rigid internal lattice, perfect for high-load structural assemblies.
🌊 Superior Water Resistance
Negligible moisture absorption compared to PA6/PA66. Retains strength in humid or wet environments.
🏎️ Thermal Stability
Exceptional heat deflection properties, suitable for engine compartments and industrial exhaust areas.
📏 Zero-Warp Precision
Fiber-stabilized matrix ensures flat bases and perfect tolerances, even for massive industrial prints.
- Functional automotive prototypes and racing components
- Aerospace brackets and lightweight structural airframes
- Industrial fluid handling pumps and valve bodies
- End-of-arm tooling for high-speed robotics
- Tactical equipment and outdoor survival gear
- Bicycle components and professional sports equipment
| Material Identity & Resilience Data | |
|---|---|
| Producer / Series | Spectrum Filaments / PA12-CF15 |
| Material Type | Polyamide 12 + 15% Carbon Fiber |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color | Carbon Black (Matte Tech Finish) |
| Net Weight | 1.00 kg (High Capacity Spool) |
| Heat Deflection Temp (HDT) | Up to 150°C - 170°C |
| EAN / SKU | 5903318305097 / 80407 |
| Nozzle Temperature | 255 - 280°C |
| Heated Bed Temperature | 80 - 100°C |
| Nozzle Type | Hardened Steel / Ruby (MANDATORY) |
| Enclosure | Recommended (To prevent interlayer stress) |
| Cooling Fan | 0 - 10% (Off for industrial-strength bonding) |
| Drying Recommended | Yes (80°C for 4-8 hours for optimal finish) |
| Net Weight [kg] | Spool Type | Protection | Environment Grade |
|---|---|---|---|
| 0.5-1.00 | Standard Industrial Spool | Vacuum Sealed + Desiccant | Hydrophobic Engineering Grade |
Prepare your production line with the official technical data:
* Expert Tip: Due to the low-shrinkage nature of PA12-CF15, it is one of the few engineering materials that allows for large-format printing without the need for extreme chamber temperatures. For maximum surface smoothness, use a 0.6mm hardened nozzle to allow the carbon fibers to flow freely without congestion.
