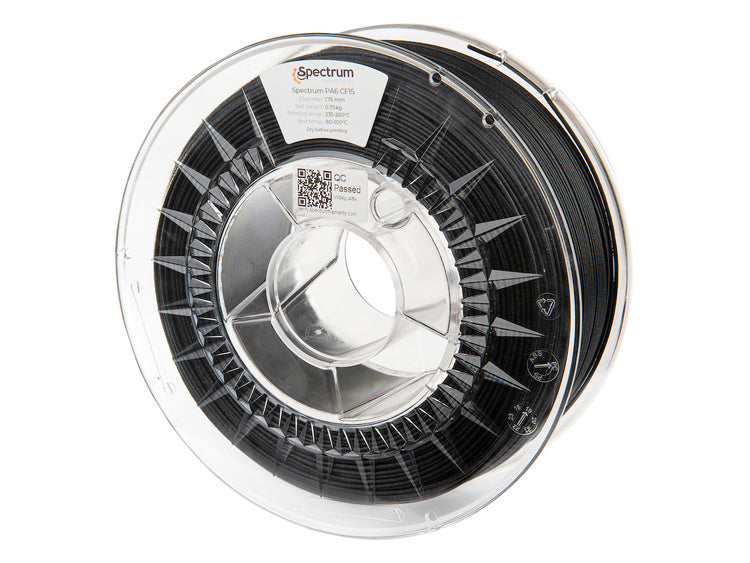

Spectrum PA6-CF15
Carbon Fiber Reinforced Nylon | Industrial Rigidity | 0.75kg Precision Spool
Spectrum PA6-CF15 is a professional-grade composite material that merges the chemical versatility of Polyamide 6 (Nylon 6) with the extreme mechanical properties of high-modulus carbon fibers. This synergy results in a filament that is exceptionally stiff, dimensionally stable, and incredibly resistant to heat.
Designed for end-use industrial components, PA6-CF15 offers a significant reduction in weight while maintaining a load-bearing capacity that rivals some aluminum alloys. The integrated carbon fibers act as a microscopic reinforcement lattice, virtually eliminating the shrinking and warping issues typically associated with 3D printing pure nylon.
Due to the 15% carbon fiber content, this filament is highly abrasive. To ensure consistent extrusion and prevent machine damage, a Hardened Steel Nozzle (or Ruby/Tungsten Carbide) is strictly required. Standard brass nozzles will experience rapid wear within hours of printing.
🏙️ High Modulus & Strength
Unmatched structural rigidity. Ideal for parts that must resist bending and deformation under heavy mechanical loads.
🔥 Enhanced Thermal Stability
Superior heat deflection temperature (HDT), allowing functional parts to operate in high-temperature environments.
🛡️ Chemical & Wear Resistance
Exceptional durability against oils, fuels, and industrial solvents, coupled with a low-friction, wear-resistant surface.
🌑 Industrial Matte Aesthetics
Produces a professional, deep black matte finish that conceals layer lines and feels premium to the touch.
- Automotive engine bay covers and brackets
- End-of-Arm Tooling (EOAT) for robotics
- High-stress industrial jigs, fixtures, and clamps
- UAV / Drone frames and high-speed structural components
- Heavy-duty sports equipment and outdoor gear
- Functional prototypes requiring metal-like stiffness
| Material Identity & Mechanical Specs | |
|---|---|
| Producer / Series | Spectrum Filaments / PA6-CF15 |
| Material Type | Polyamide 6 + 15% Carbon Fiber |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color | Industrial Black (Matte) |
| Net Weight | 0.75 kg |
| Heat Deflection Temp (HDT) | Up to 120-150°C (depending on load) |
| EAN / SKU | 5903318301228 / 80120 |
| Nozzle Temperature | 250 - 280°C |
| Heated Bed Temperature | 80 - 100°C |
| Nozzle Type | Hardened Steel (Required) |
| Enclosure | Recommended (For thermal stability) |
| Cooling Fan | 0 - 10% (Off for best layer adhesion) |
| Drying Recommended | Critical (80°C for 6-12 hours) |
| Net Weight [kg] | Spool Type | Sealing | Reinforcement Grade |
|---|---|---|---|
| 0.75 | Standard Industrial Spool | Vacuum Sealed + Desiccant | High-Modulus Chopped CF |
Access official documentation for industrial compliance:
* Crucial Moisture Note: Nylon is highly hygroscopic. Even a few hours of exposure to humidity can degrade print quality. Always store in a dry box and pre-dry before every print to ensure maximum mechanical strength and surface finish.
