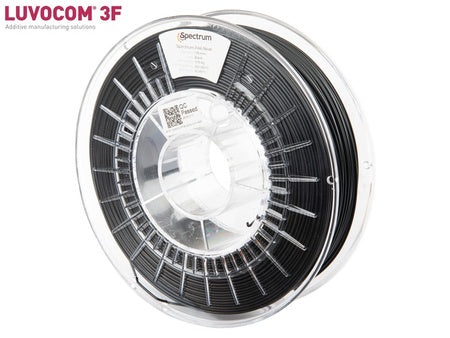

Spectrum PA6-CS20 FR V0
Flame Retardant Silicate Nylon
Certified UL 94 V-0 Safety | 20% Mineral Reinforcement | 0.75kg Spool
Spectrum PA6-CS20 FR V0 is a high-performance industrial filament meticulously developed for applications where fire safety is the primary requirement. By combining a Polyamide 6 matrix with 20% silicate fibers and halogen-free flame retardants, Spectrum has engineered a material that offers extreme mechanical stiffness alongside elite thermal protection.
This filament is certified to the UL 94 V-0 flammability standard, meaning that combustion stops within 10 seconds on a vertical specimen, without any flaming drips. For engineers in the electrical, automotive, and rail sectors, PA6-CS20 FR V0 provides the peace of mind necessary to substitute traditional metal parts with lightweight, 3D-printed safety components.
Silicate fibers do more than just add strength. Unlike traditional glass fibers, they offer superior dimensional stability and a lower coefficient of thermal expansion. This ensures that electrical connectors and housings maintain their precise fit even when exposed to fluctuating operational temperatures.
🔥 Top-Tier Fire Safety
Halogen-free, self-extinguishing material compliant with UL 94 V-0, ensuring low smoke toxicity.
🏙️ High Structural Rigidity
20% silicate reinforcement delivers exceptional tensile modulus, capable of replacing structural metal brackets.
⚡ Low Dielectric Constant
Optimized electrical insulation properties, perfect for high-voltage enclosures and terminal blocks.
📏 Precision Engineering
Reduced shrinkage compared to standard nylon, allowing for complex geometries and accurate industrial fits.
- Electrical distribution boxes and switchgear
- Battery housings and EV charging components
- Public transport and railway interior parts
- High-temperature cable organizers and clips
- Power tool internal structural frames
- Industrial sensor mounts in flammable environments
| Material Identity & Fire Safety Compliance | |
|---|---|
| Producer / Series | Spectrum Filaments / PA6-CS20 FR V0 |
| Material Type | Polyamide 6 + 20% Silicate + FR Additives |
| Filament Diameter | 1.75 mm ± 0.05 mm |
| Color | Solid Black (Industrial Matte) |
| Net Weight | 0.75 kg |
| Flammability Class | UL 94 V-0 (Self-Extinguishing) |
| EAN / SKU | 5903318301242 / 80112 |
| Nozzle Temperature | 250 - 280°C |
| Heated Bed Temperature | 80 - 100°C |
| Nozzle Type | Hardened Steel (Strongly Recommended) |
| Enclosure | Required (For consistent layer bonding) |
| Cooling Fan | 0 - 15% (Minimum for maximum strength) |
| Drying Recommended | CRITICAL (80°C for 6-12 hours) |
| Net Weight [kg] | Spool Type | Protection | Compliance |
|---|---|---|---|
| 0.75 | Standard Industrial Spool | Vacuum Sealed + Desiccant | REACH / RoHS / UL 94 V0 |
Download the official certificates for industrial audits:
* Safety Note: While FR V0 materials are self-extinguishing, always print in a well-ventilated area or with a filtered enclosure. For the best mechanical and flame-retardant performance, ensure the filament is perfectly dry before printing.
