Spectrum PETG PTFE
Self-Lubricating Composite | Ultra-Low Friction | 1.0kg
Spectrum PETG PTFE is a revolutionary tribological filament designed for components where sliding, rotating, or repetitive mechanical contact is inevitable. By precision-blending High-Quality PETG with PTFE (Polytetrafluoroethylene) micro-powder, we've created a material that inherently minimizes friction and heat buildup at the contact surface.
Presented in Traffic Black (RAL 9017), this filament provides a premium, low-gloss professional finish. The PTFE integration ensures that printed parts exhibit self-lubricating properties, eliminating the need for external grease or oils in many mechanical assemblies.
Standard PETG can often "stick" or gall during mechanical movement. Spectrum PETG PTFE solves this by providing a non-stick, low-friction skin. This is the industrial answer for gears, guide rails, and bushings that require long-term operational reliability without maintenance.
🔄 Self-Lubricating Surface
The infused PTFE acts as a permanent dry lubricant, significantly reducing the coefficient of friction.
🛡️ Superior Wear Resistance
Enhanced surface hardness and low friction combine to prevent material erosion during high-cycle use.
🧪 Chemical & Heat Stability
Maintains the excellent chemical resistance of PETG while offering improved thermal stability during friction.
📐 Exceptional Print Quality
Modified for minimal warping and high dimensional accuracy, matching the ease of use of premium PETG.
- Industrial gears, cams, and transmission systems
- Custom sliding bearings and guide bushings
- Conveyor system components and rollers
- Protective sleeves and non-stick technical covers
- Functional prototypes for kinematic mechanisms
- End-use parts for robotics and automated machinery
| Material Identity & Mechanical Profile | |
|---|---|
| Producer / Series | Spectrum Filaments / Industrial Tribo |
| Material Type | PETG + PTFE (Micro-powder) |
| Filament Diameter | 1.75 mm ± 0.05 mm |

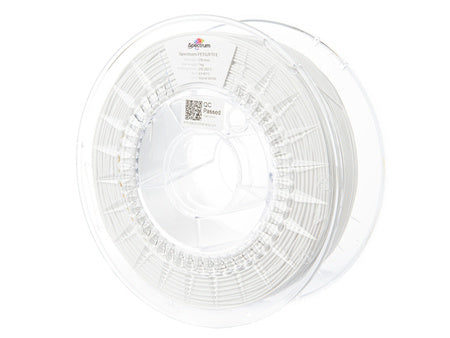

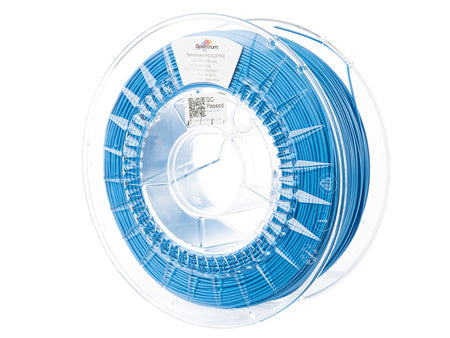

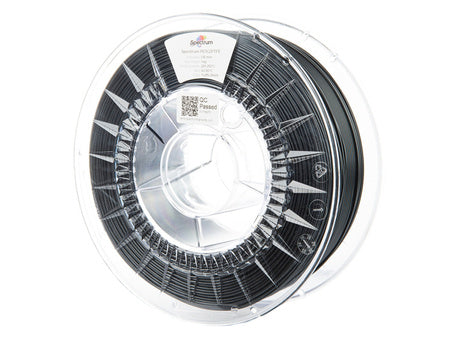

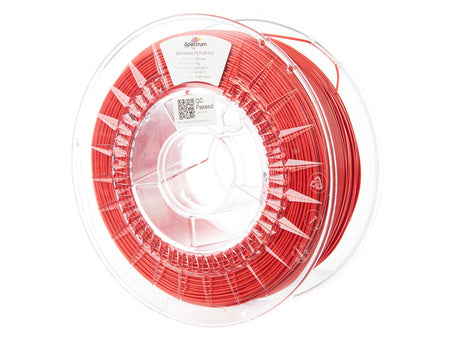

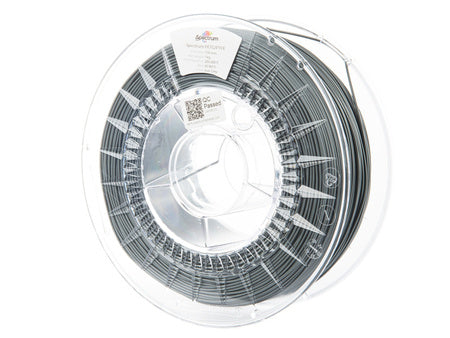

| Color Name | Traffic Black (RAL 9017)/SIGNAL WHITE/DARK GREY/LIGHT BLUE/TRAFFIC RED |
| Surface Finish | Low-Gloss / Self-Lubricating |
| Net Weight | 1.00 kg (Industrial Spool) |
| EAN / SKU | 5903116681603 / 80145 |
| Nozzle Temperature | 235 - 255°C |
| Heated Bed Temperature | 70 - 80°C |
| Print Speed | 30 - 60 mm/s |
| Chamber Requirement | Not required, but improves results |
| Bed Adhesive | Magigoo / PEI / 3DLAC |
| Cooling Fan Speed | 20 - 50% (Adjust for strength) |
| Diameter Accuracy | PTFE Distribution | Protection | Compliance |
|---|---|---|---|
| ±0.05 mm (2-Axis) | Homogeneous Matrix Blend | Vacuum Sealed + Desiccant | Individual QR Code Quality Report |
Access critical tribological data for mechanical engineering:
* Professional Handling Tip: PETG PTFE is designed to be user-friendly. For the absolute best surface friction properties, we recommend a slightly higher print temperature to ensure the PTFE powder is perfectly integrated into the surface skin. Always dry the filament at 60°C for 4 hours before critical prints.
